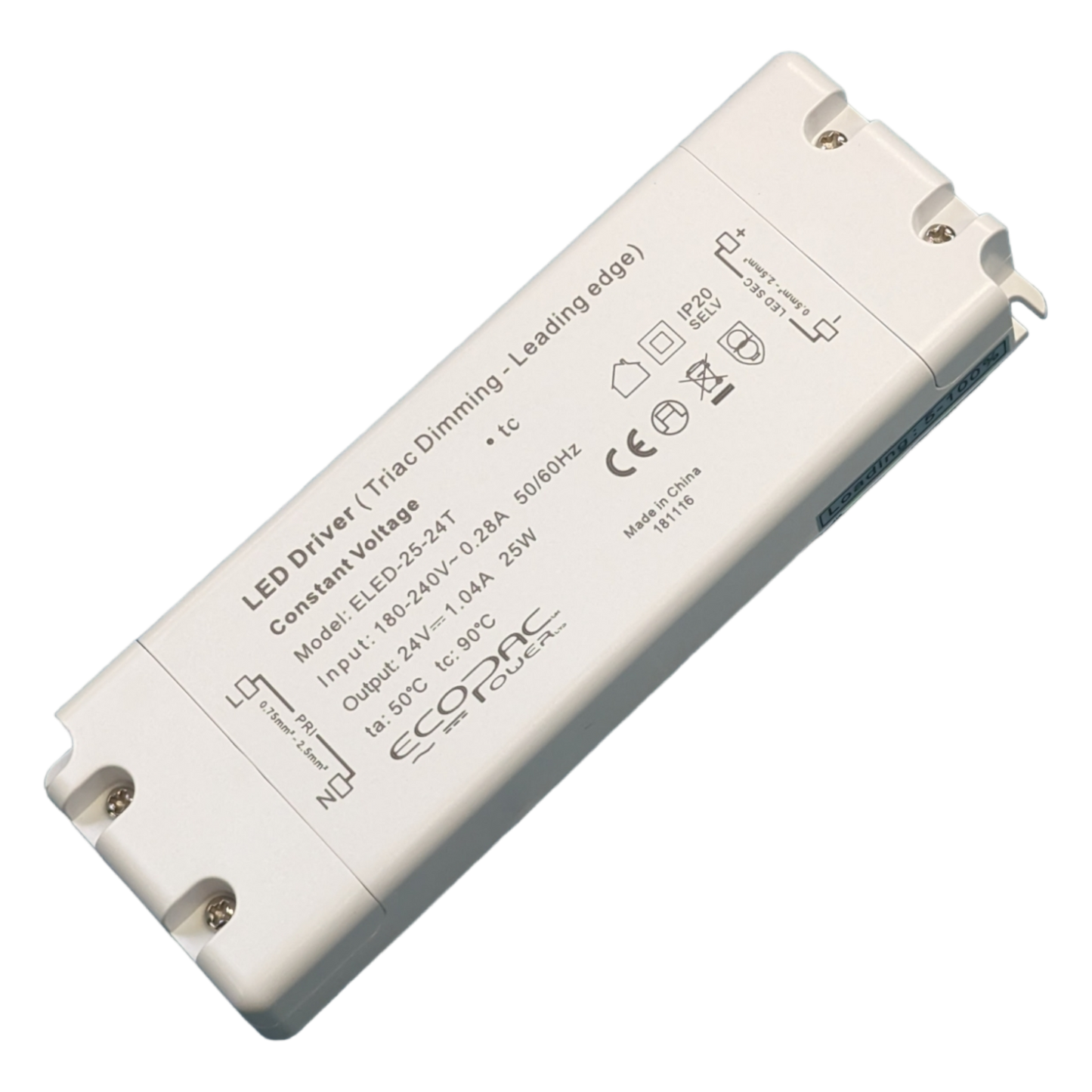

Ecopac ELED-25-24T LED Driver

25 Watt Triac Dimmable Driver

• Model: ELED-25-24T
• Manufacturer: Ecopac Power

Features

• Works with leading edge TRIAC dimmers
• Constant Voltage
• Universal AC Input: 180-240VAC
• High efficiency up to 85%
• Protections: Short Circuit/ Over Loading/ Over Current
• Cooling by free air convection
• Lightweight plastic case

Output:

• DC Voltage 24V
• Voltage Tolerance +0.5V
• Output Power 25W
• Rated Current 1.04A

Input:

• Input Voltage Range 180-240VAC AC
• Frequency 47-63Hz
• Power Factor >0.65
• Efficiency >83%
• AC Current 0.21A
• Leakage Current <0.70mA/220VAC
