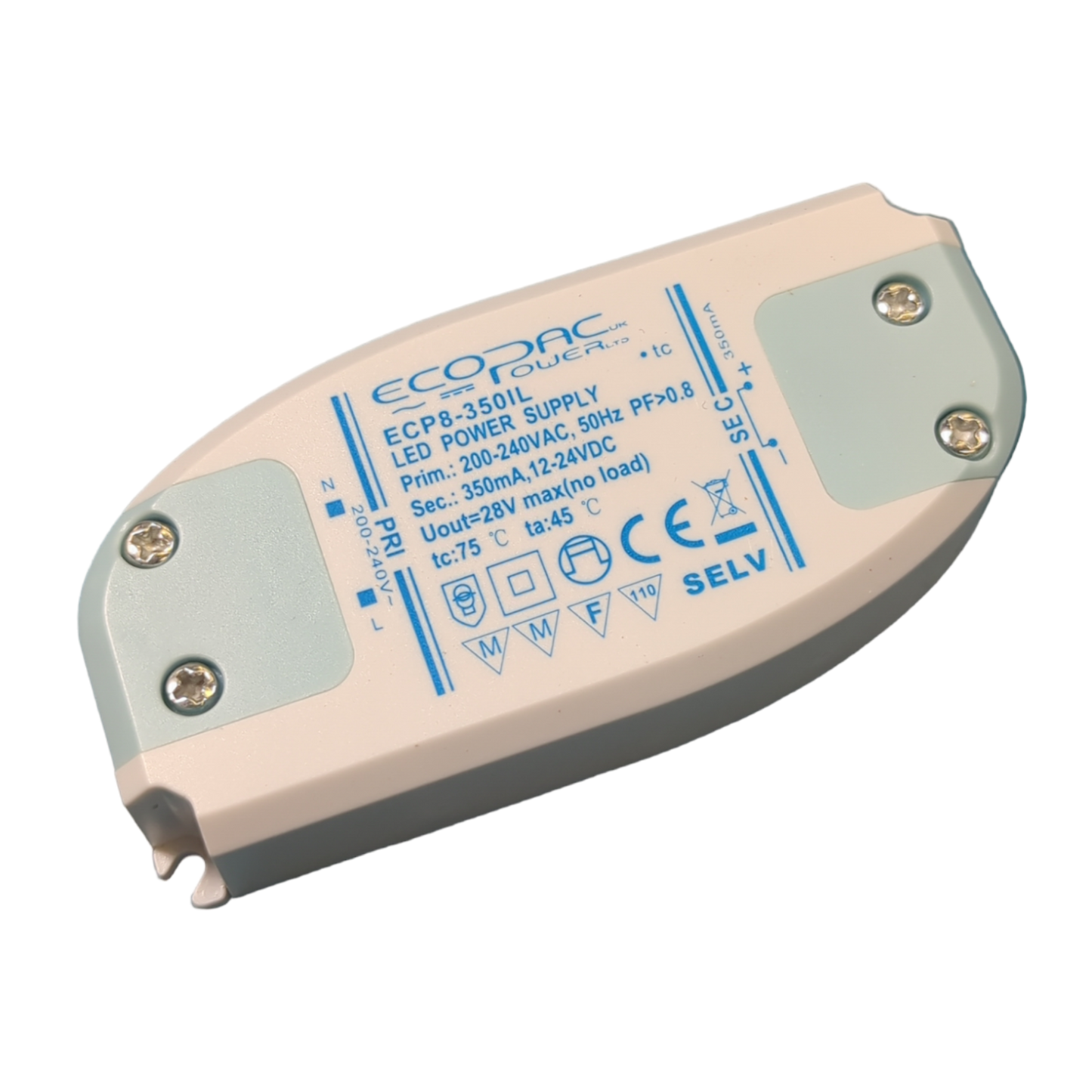

Ecopac ECP8-350IL LED Driver

The LED power supply Ecopack ECP8-350IL is exclusively designed for the Light Emitting Diode (LED) lamps used in indoors. It is a switch mode power constant output current. supply with 350mA constant output current.

Specifications:

• Model: ECP8-350IL
• Manufacturer: Ecopac Power
• Input voltage: 200-240V +/-10% 50Hz
• Input current: <0.1A
• Output current: 350mA +/-35mA
• Output voltage range: 12-24VDC
• Protection degree: IP20
• Ambient temperature: ta: Max. 45°C
• Case temperature tc: Max. 75 °C
• Primary cable: H03VVH2-F 2x0.75mm²
• Secondary cable: H03VVH2-F 2x0.75mm²
