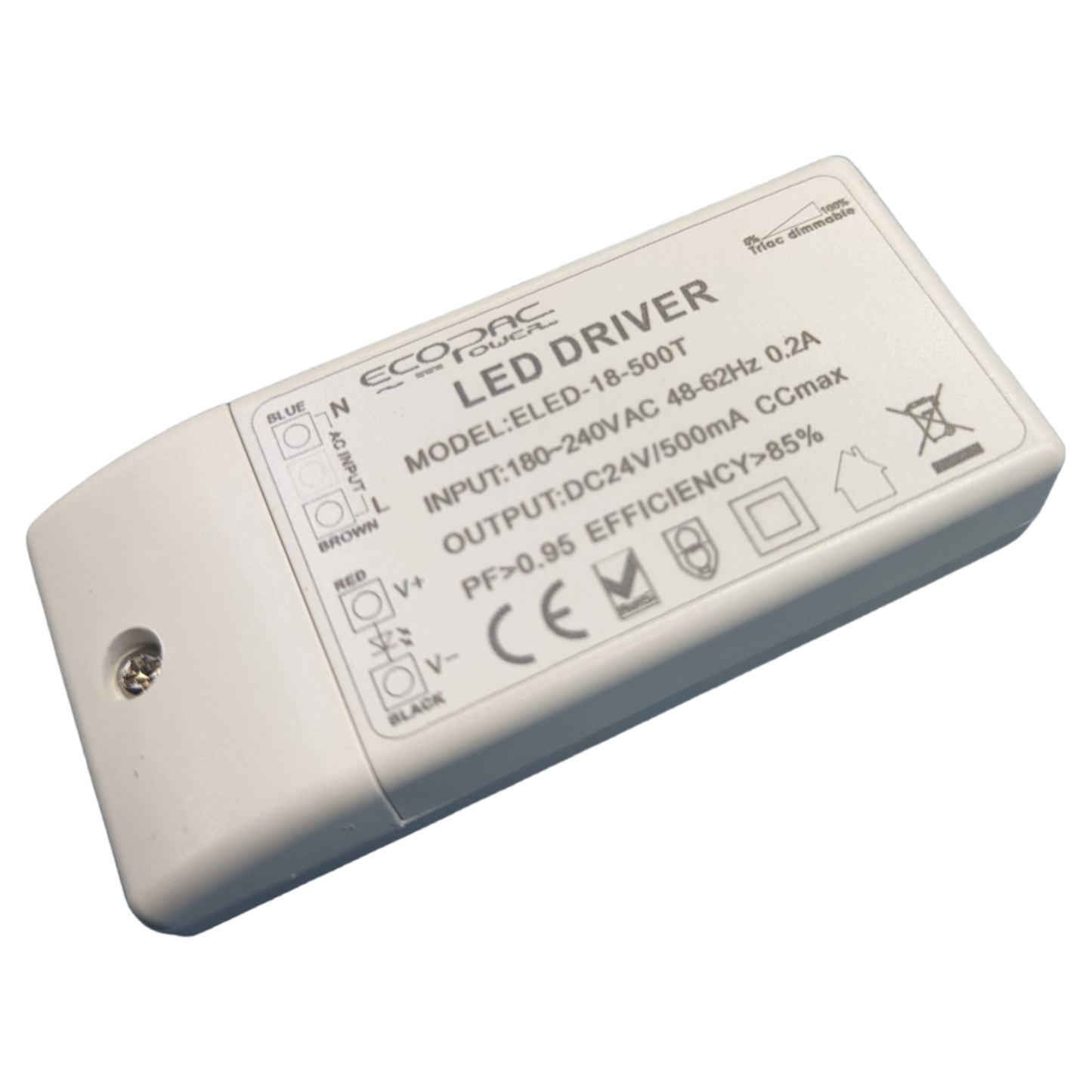

Ecopac ELED-18-500T LED Driver

18W Triac Dimmable Driver

• Model: ELED-18-500T
• Manufacturer: Ecopac Power

Features

• Triac dimmable
• Suitable for leading/ trailing edge dimming • Constant current and constant voltage design
• Protections: Short circuit/ Overload/ Over voltage
• Built-in PFC function (PFC>0.95)
• Cooling by free air convection
• Up to 84% efficiency
• Fully isolated, delivering up to 18W of power

 Characteristics

• Input Voltage Range: 220-240VAC
• AC Frequency: 50-60Hz
• Output Mode: Constant Current
• Output Current: 500mA
• Output Voltage: 20-36V
• Output Power: 18W Max
• Power Factor: >0.95
• Efficiency: >80%
• Operating Temperature: -30°C-+45°C
• Relative Humidity: 5-95%
• Isolation Voltage: In/ Out 3000VAC
• Vibration: 5-55Hz/ 2g, 30minutes EMI EN55015 Class B
• Safety: EN61347-1, EN61347-2-13
• Electromagnetic Immunity: EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11
• Harmonic Current Emissions: EN61000-3-2, EN61000-3-3
• Dimensions (mm): 91x 40x 19
