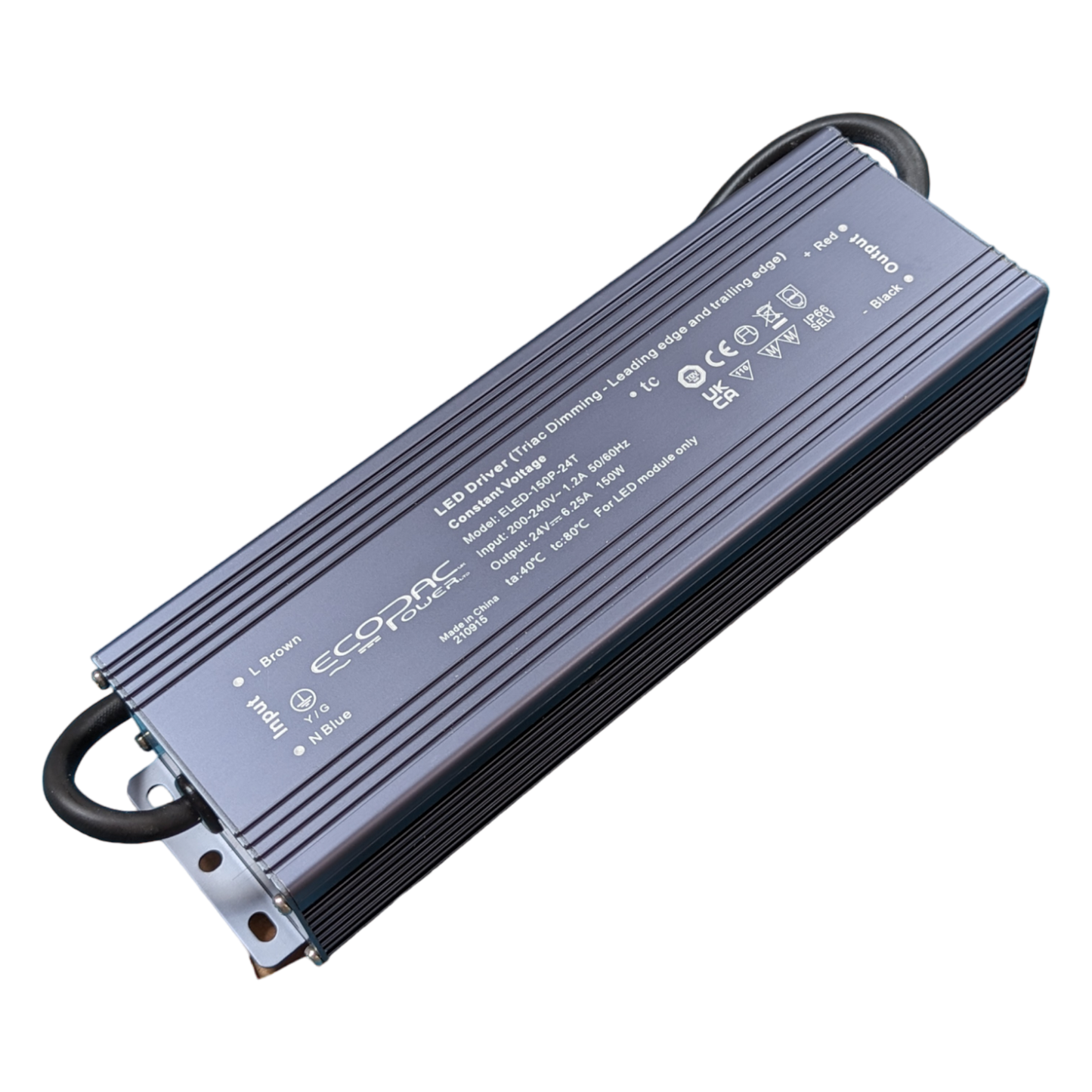

Ecopac ELED-150P-24T LED Driver

150 Watt PREMIUM Triac Dimmable Driver
Model: ELED-150P-24T
Manufacture: Ecopac Power

Features:

• Constant voltage/ PWM Output
• Leading & Trailing edge dimmable
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 87%
• Protections: Short circuit/ Over loading/ Over current/ Over temperature
• Full protection aluminium housing
• Cooling by free air convection
• Suitable for LED lighting and moving signs

Specifications:

• Output Voltage 24V
• Output Current 6.25A
• Rated Power 150W
• Input Voltage 200-240VAC
• Frequency Range 47-63Hz
• AC Current (Max.) 1.2A
• IP Rating: IP66
