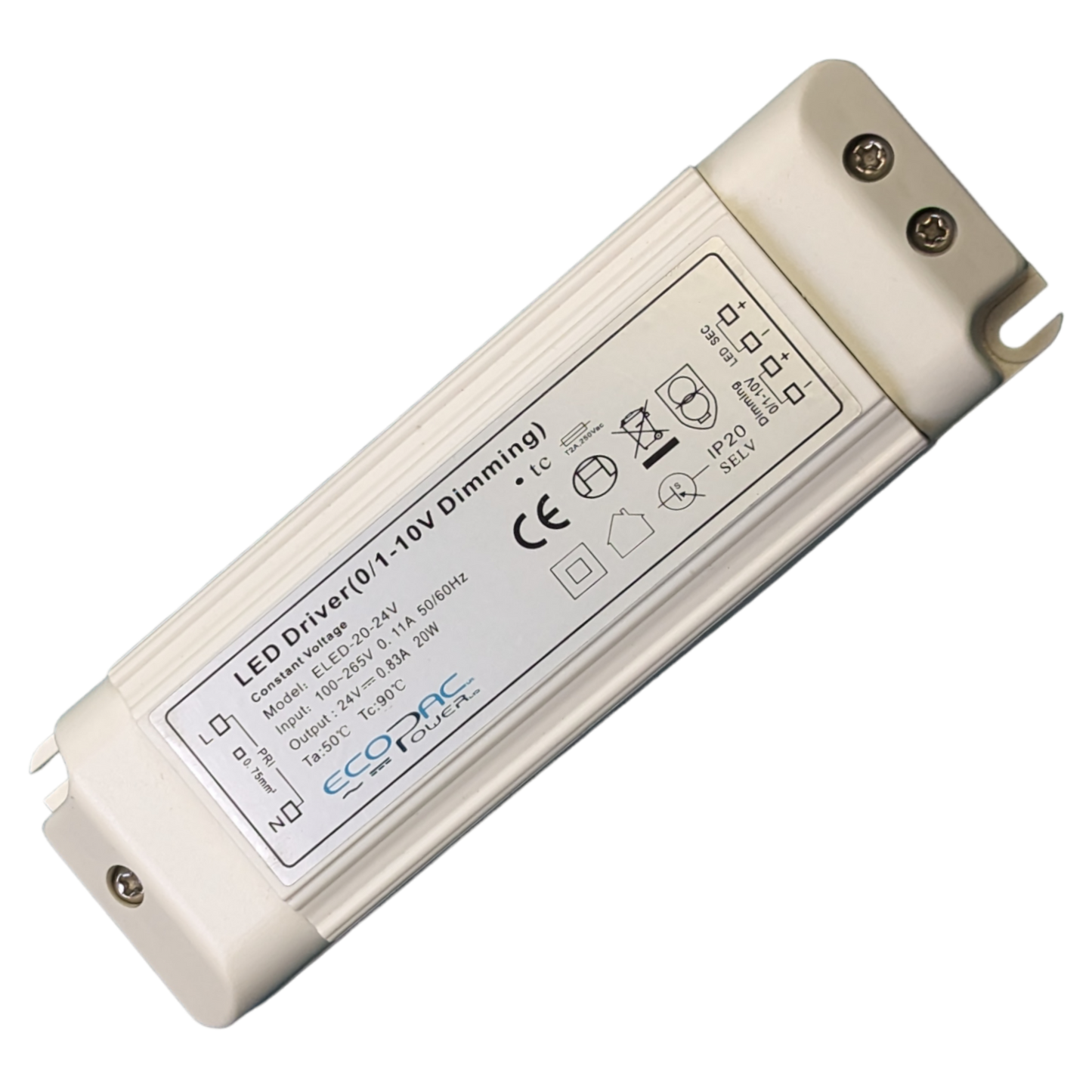

Ecopac ELED-20-24V 20W 0/1-10V Dimmable LED Driver

Ecopac ELED-20-24V 20W 0/1-10V Dimmable LED Driver

• Model: ELED-20-24V Led Driver
• Manufacturer: Ecopac Power

Features:

• Constant voltage
• 3 in 1 dimming function (0/1-10Vdc or 10v PWM signal or resistance)
• AC input: 100-265VAC
• Built-in active PFC function
• High efficiency up to 82%
• Protections: Short circuit/Over current/ Over loading
• Cooling by free air convection
• Suitable for LED lighting and moving signs

Characteristics

• Output Voltage: 24V
• Voltage Tolerance: ± 0.5%
• Output Current: 0.83A
• Rated Power: 20W
• Input Voltage: 100-265VAC
• Frequency Range: 47-63Hz
• Full Load Efficiency (Typ.): 82%
• Leakage Current <0.50mA
