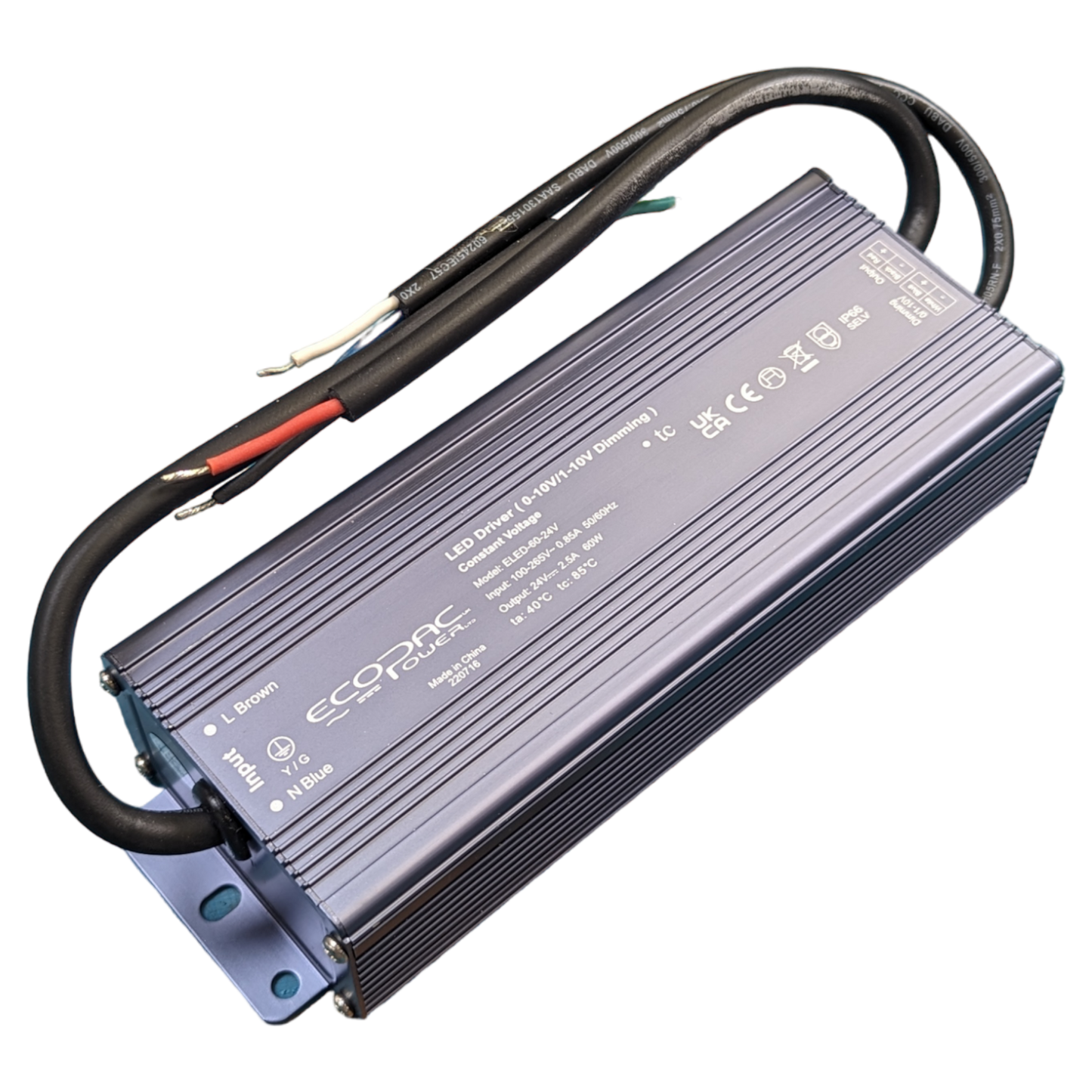

Ecopac ELED-60-24V LED Driver

60W 0/1-10V Dimmable LED Driver

• Model: ELED-60-24V
• Manufacture: Ecopac Power

Features:

• Constant voltage
• 3 in 1 dimming function (0/1-10Vdc or 10v PWM signal or resistance)
• AC input: 100-265VAC
• Built-in active PFC function
• High efficiency up to 86%
• Protections: Short circuit/ Over current/ Over loading
• IP66 design for indoor and outdoor installation
• Suitable for LED lighting and moving signs

Specifications:

• Output Voltage 24V
• Output Current 2.5A
• Rated Power 60W
• Input Voltage 100-265VAC
• Frequency Range 47-63Hz
• AC Current (Max.) 0.64A
