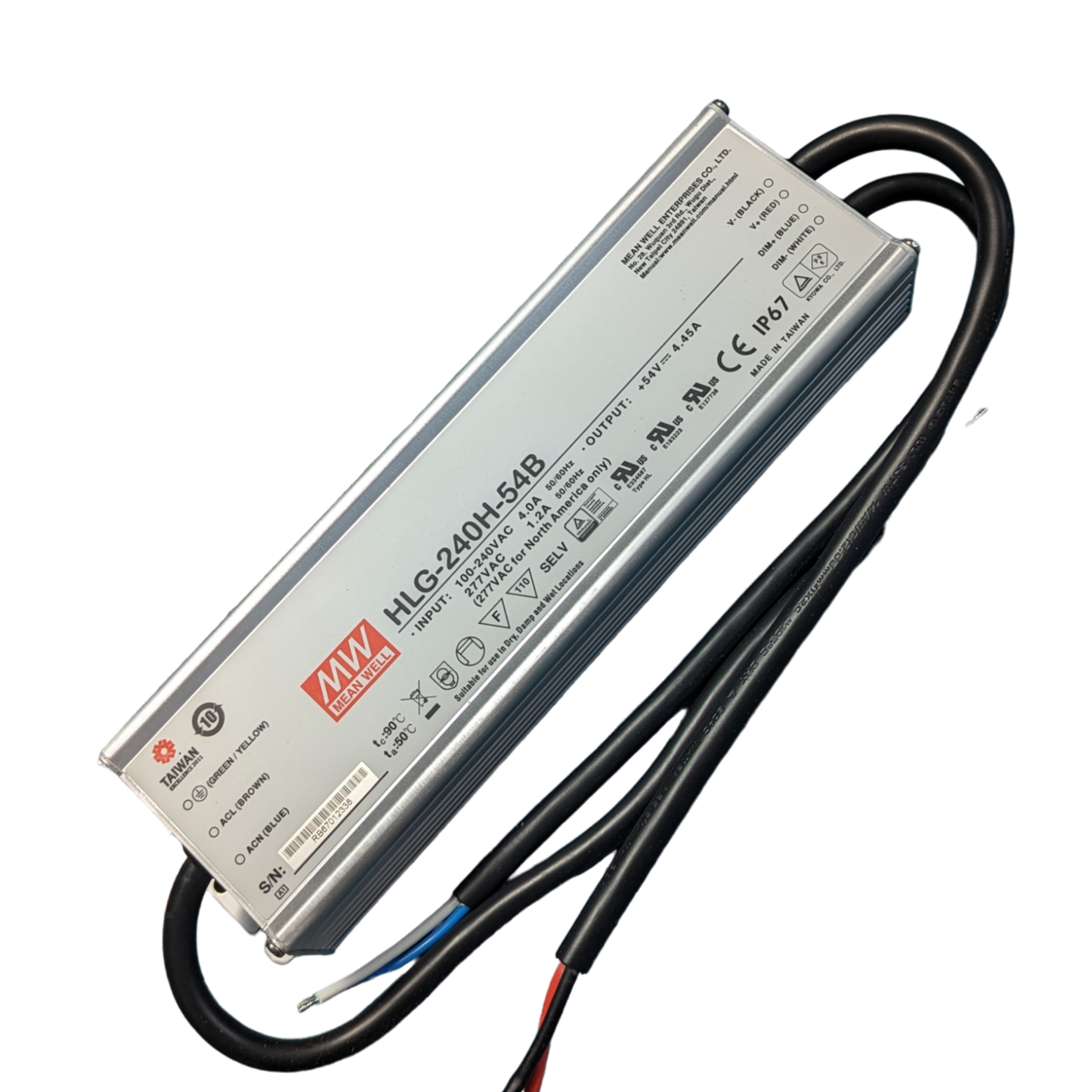

Meanwell HLG-240H-54B LED Driver

HLG-240H-54B 240W Constant Voltage + Constant Current LED Driver

HLG-240H Series is a 240W AC/DC LED driver featuring the dual mode constant voltage + constant currentoutput. HLG-240H operates from 90 - 305VAC and offers models with different rated voltage ranging ～ between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40 ~ +90 ℃ ℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

• Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

• IP67 design for indoor or outdoor installations
• Protections: Short circuit / Over current / Over voltage / Over temperature
• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 95%
• Output current adjustable through output cable or internal potentiometer
• Cooling by free air convection
• Suitable for LED lighting and street lighting applications
• Meet 4KV surge immunity level (IEC61000-4-5)
• Multiple models for choice:
• Built-in active PFC function, PF>0.9 for 60% of load or higher

Specifications:

• Wattage: 240W
• Input: 90~305VAC, 127~431VDC
• Ouput: 54V
• Output Voltage Options: Single
• DC output adjustment: +/-6% rated output voltage
• Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1

• EMC Standards EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
