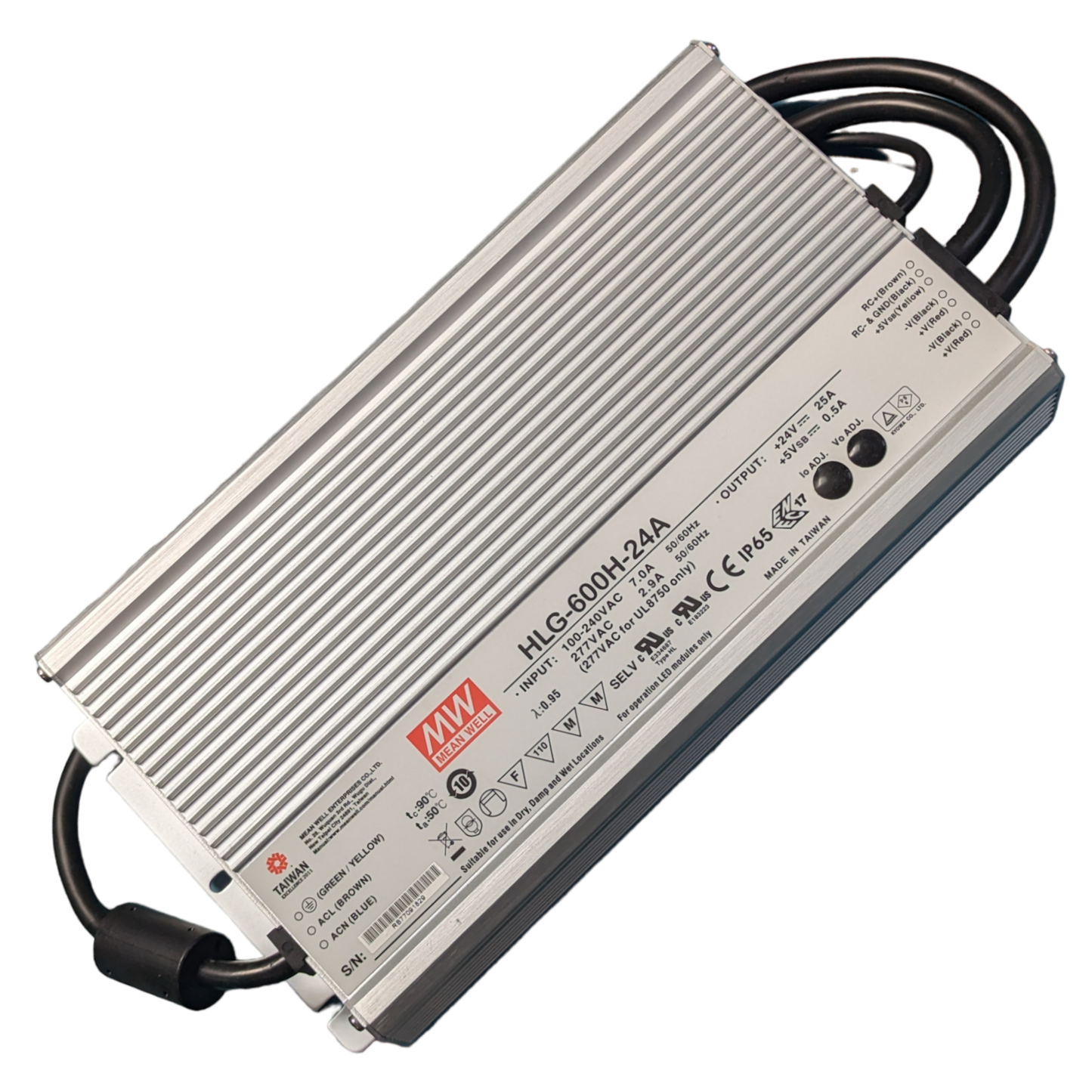

Meanwell HLG-600H-24A LED Driver
Meanwell HLG-600H-24A LED Driver
HLG-600H-24A 600W Constant Voltage + Constant Current LED Driver
HLG-600H series is a high performance dustproof and waterproof AC-to-DC LED power supply up to 600W. The fully-potted silicone and the aluminium case facilitate the heat dissipation. Above all, it delivers the efficiency up to 96% that tops the LED power supply field. Other features include the wide working temperature range between -40 and +70 , the fan-less design, the adjustable output voltage and current, the surge susceptibility up to 4KV (EN61000-4-5), low no-load power consumption (<0.5W) at remote OFF and workable for 277VAC input. These attributes all make HLG-600H the fit for the indoor/outdoor LED lighting application requiring remarkable reliability.
- Output voltage and C.C level can be adjusted through internal potentiometer
- IP65 design for indoor or outdoor installations
- Protections: Short circuit / Over current / Over voltage / Over temperature
Features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Built-in active PFC function, PF>0.9 for 60% of load or higher
Specifications:
- Wattage: 600W
- Input Voltage: 127 → 431 V dc, 90 → 305 V ac
- Frequency Range: 47-63Hz
- Output Voltage: 24v
- DC output adjustment: 20.4~25.2
- Safety Standards: UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP65
