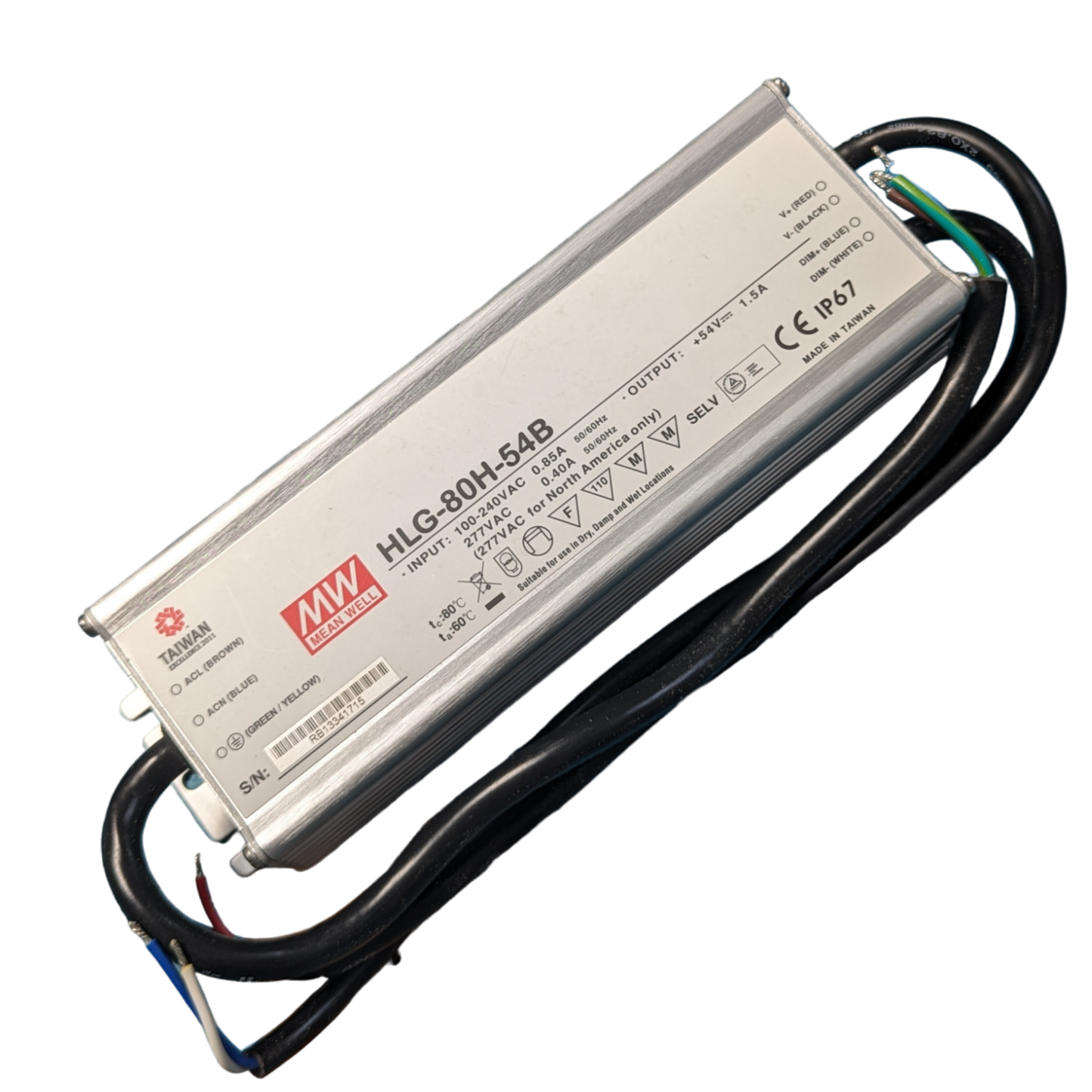

Meanwell HLG-80H-54B LED Driver

Meanwell HLG-80H-54B LED Driver

Regular price £42.50 GBP
Regular price Sale price £42.50 GBP
Sale Sold out
Shipping calculated at checkout.

0-10V Dimmable Constant Voltage LED Driver 60–80W
Model: HLG-80H-54B
Manufacture: Mean Well

  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
  • Built-in active PFC, PF>0.9 for 60% of load or higher
  • Protections: Short circuit / Over current / Over voltage / Over temperatur
  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 94%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for dry, damp and wet location
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Class 2 power unit
  • IP67 design for indoor or outdoor installations


  • Wattage: 80W
  • Input: 90~305VAC, 127~431VDC
  • Ouput: 54V
  • Output Voltage Options: Single
  • DC output adjustment: +/-10% rated output voltage
  • Safety Standards: UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1
  • EMC Standards: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
