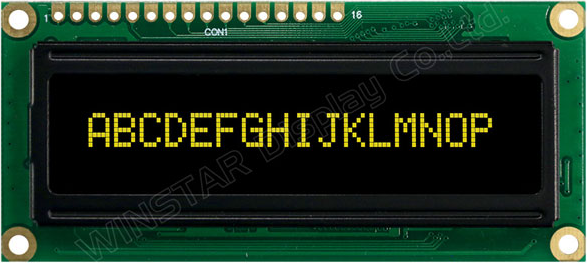

Oled Display

This Oled display unit features OLED technology to produce a device that is lightweight and has better power efficiency, wider viewing angles and improved brightness over conventional LCD displays. Unlike most displays that only have two, Winstar displays have four character sets: Western, Japanese, Cyrillic and Chinese. This display has a yellow emitter and has the overall dimensions of 84 x 44 x 10mm.

• Condition: Brand New
• Brand: Winstar

• MPN: WEH001602ELPP5N00000
• Character Size: 2.95 x 5.55mm

• Colour: Yellow
• Display Format: 16 x 2
• Type: Character
• 6x2 Character OLED Display

• Built-in Controller WS0010

• 1/16 duty cycle

• Interface: 6800

• Module dimension: 84x44x10mm

• View area: 66x16mm

• Active area: 56.95x11.85mm

• Dot pitch: 0.60x0.70mm

• Character size: 2.95x5.55mm

• Character pitch: 3.6x6.3mm
• Logic Voltage: 5V
• Operating Temperature Min: -40°C

• Operating Temperature Max: 80°C
• Font Set: English, Cyrillic, Euro, Japanese
