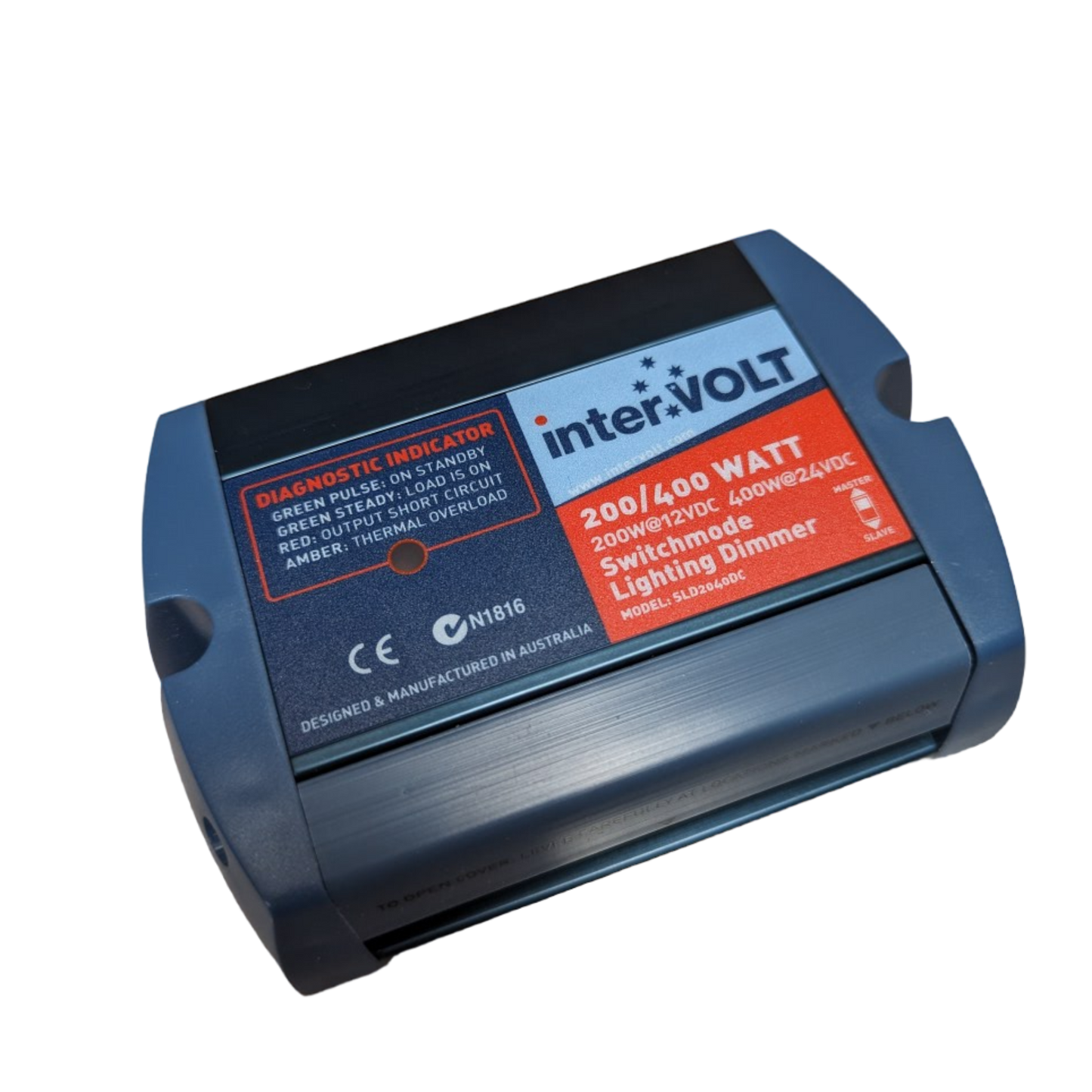

Swithmode Lighting Dimmer 200/400 WATT
Swithmode Lighting Dimmer 200/400 WATT
Regular price
£105.00 GBP
Regular price
Sale price
£105.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Model: SLD2040DC
- Input Voltage Range: 9–33VDC
- Continuous Load Rating @ 30°C (86ºF) : 200 Watts @ 13.0VDC, 400 Watts @ 26.0VDC
- Dimming Voltage Range: 10–98% of input voltage
- Standby Current Draw: <10mA
- Operator: Single pole momentary push switch (normally open). Multiple switches can be used.
- Operating Temperature: -25°C to + 45°C
- Operating Humidity: Ideally less than 90%
- Materials: - Enclosure Marine grade aluminium dye anodised
- End Cap: Injection moulded electrical grade ABS/PC plastic
- Terminal Cover: Extruded temperature resistant ABS
- Diagnostic Indicator: Tri-colour LED – monitoring standby mode, load on, short circuit and temperature
- Electrical Protection: Transient voltage - Filtering – Purpose designed circuit Short circuit shutdown – auto reset Thermal - Foldback to 50% of rated load – auto reset
- Termination: Power – 6-32 UNC H/D screw terminal Auxiliary – Euro terminal block
- Dimensions: 120mm x 80mm x 40mm
- Weight: 250 Grams
