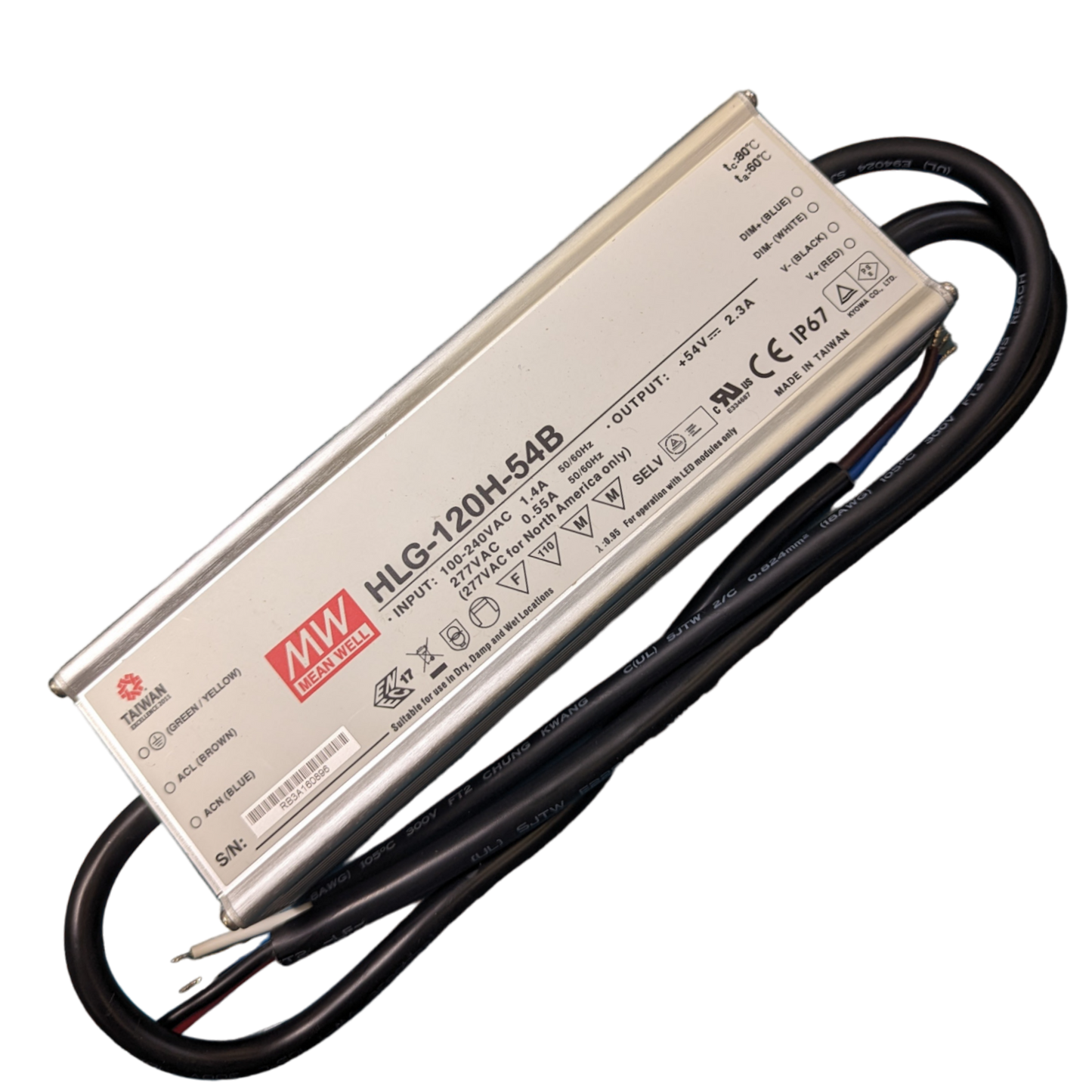

Meanwell HLG-120H-54B LED Driver

Meanwell HLG-120H-54B AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC

HLG-120H Series is a 120W AC/DC LED driver featuring the dual mode constant voltage constant current output. HLG-120H operates from 90～305VAC and offers models with different rated voltages ranging between 12V and 54V. Thanks to the high efficiency of up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H is equipped with various function options, such as dimming methodologies, so as to provide optimal design flexibility for LED lighting systems.

• Manufacturer Mean Well
• Output Wattage (W) 120
• Output Voltage 54V
• Dimmable (Type) 1-10VDC, PWM signal, resistance
• DC Output Adjustment +/-10% rated output voltage
• Dimensions 220 x 68 x 38.8
• Universal AC input (up to 305VAC) /Full range
• High efficiency up to 94%
• Output current adjustable through output cable or internal potentiometerCooling by free air convection
• Suitable for dry, damp and wet locations
• Suitable for LED lighting and street lighting applications
• Meet 4KV surge immunity level (IEC61000-4-5)Multiple models for choice:
• Output and C.C level can be adjusted through an internal potentiometer
